Product Description
The recommended installation torque is ≥6.5N.m
- To protect the hose from extrusion and shear, we extend an inner liner to cover the worm-gear slots.
- These inner liners are integral extensions of the band, not separate welded or riveted extensions that won’t lie true to the clamping axis.
- There are no bumps under the housing to jeopardize the concentricity of the seal, and no laminated coverings to disintegrate under heat, ultraviolet, chemical or corrosive attacks.
- Aero-Seal liner clamps are designed with Quadra-Lock construction which enables more tightening torque to be delivered to the perforations while maximizing vibration resistance
-
NO. Parameters Details 1 Bandwidth*thickness 12.7*0.6mm/14.2*0.6mm/15.8*0.6mm 2 Size 10-16mm to all 3 Material w4 all stainless steel 201 or 304 4 Break Torque ≥7.M 5 Free Torque ≤1.N.M 6 Package 10pcs/bag 200pcs/ctn 7 MOQ 2000pcs 8 Payment 30% deposit .balance before shipment 9 Lead Time 20 to 25days after deposit 10 Samples Offer Free samples available 11 OEM/OEM OEM/OEM is welcome
Product Components
Material
|
TO Part No. |
Material |
Band |
Housing |
Screw |
|
TOEG |
W1 |
Galvanized Steel |
Galvanized Steel |
Galvanized Steel |
|
TOESS |
W4 |
SS200/SS300 series |
SS200/SS300 series |
SS200/SS300 series |
|
TOESSV |
W5 |
SS316 |
SS316 |
SS316 |
Application
This product is mainly used on the joints of oil, gas, liquid and rubber hose of the automobile, ship, tractor, sprinkler, gasoline engine, diesel engine and other mechanical equipment, and also in the Construction, fire and other fields of industry.
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
||||
| Min (mm) | Max (mm) | Inch |
(mm) |
(mm) |
W1 |
W4 |
W5 |
|
13 |
19 |
3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG19 |
TOESS19 |
TOESSV19 |
|
16 |
25 |
1” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG25 |
TOESS25 |
TOESSV25 |
|
18 |
32 |
1-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG32 |
TOESS32 |
TOESSV32 |
|
21 |
38 |
1-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG38 |
TOESS38 |
TOESSV38 |
|
21 |
44 |
1-3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG44 |
TOESS44 |
TOESSV44 |
|
27 |
51 |
2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG51 |
TOESS51 |
TOESSV51 |
|
33 |
57 |
2-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG57 |
TOESS57 |
TOESSV57 |
|
40 |
63 |
2-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG63 |
TOESS63 |
TOESSV63 |
|
46 |
70 |
2-3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG70 |
TOESS70 |
TOESSV70 |
|
52 |
76 |
3” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG76 |
TOESS76 |
TOESSV76 |
|
59 |
82 |
3-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG82 |
TOESS82 |
TOESSV82 |
|
65 |
89 |
3-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG89 |
TOESS89 |
TOESSV89 |
|
72 |
95 |
3-3/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG95 |
TOESS95 |
TOESSV95 |
|
78 |
101 |
4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG101 |
TOESS101 |
TOESSV101 |
|
84 |
108 |
4-1/4” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG108 |
TOESS108 |
TOESSV108 |
|
91 |
114 |
4-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG114 |
TOESS114 |
TOESSV114 |
|
105 |
127 |
5” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG127 |
TOESS127 |
TOESSV127 |
|
117 |
140 |
5-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG140 |
TOESS140 |
TOESSV140 |
|
130 |
153 |
6” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG153 |
TOESS153 |
TOESSV153 |
|
142 |
165 |
6-1/2” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG165 |
TOESS165 |
TOESSV165 |
|
155 |
178 |
7” |
12.7/14.2/15.8 |
0.6/0.7/0.8 |
TOEG178 |
TOESS178 |
TOESSV178 |
Packaging
European type hose clamps package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
- our colour box with logo.
- we can provide customer bar code and label for all packing
- Customer designed packing are available

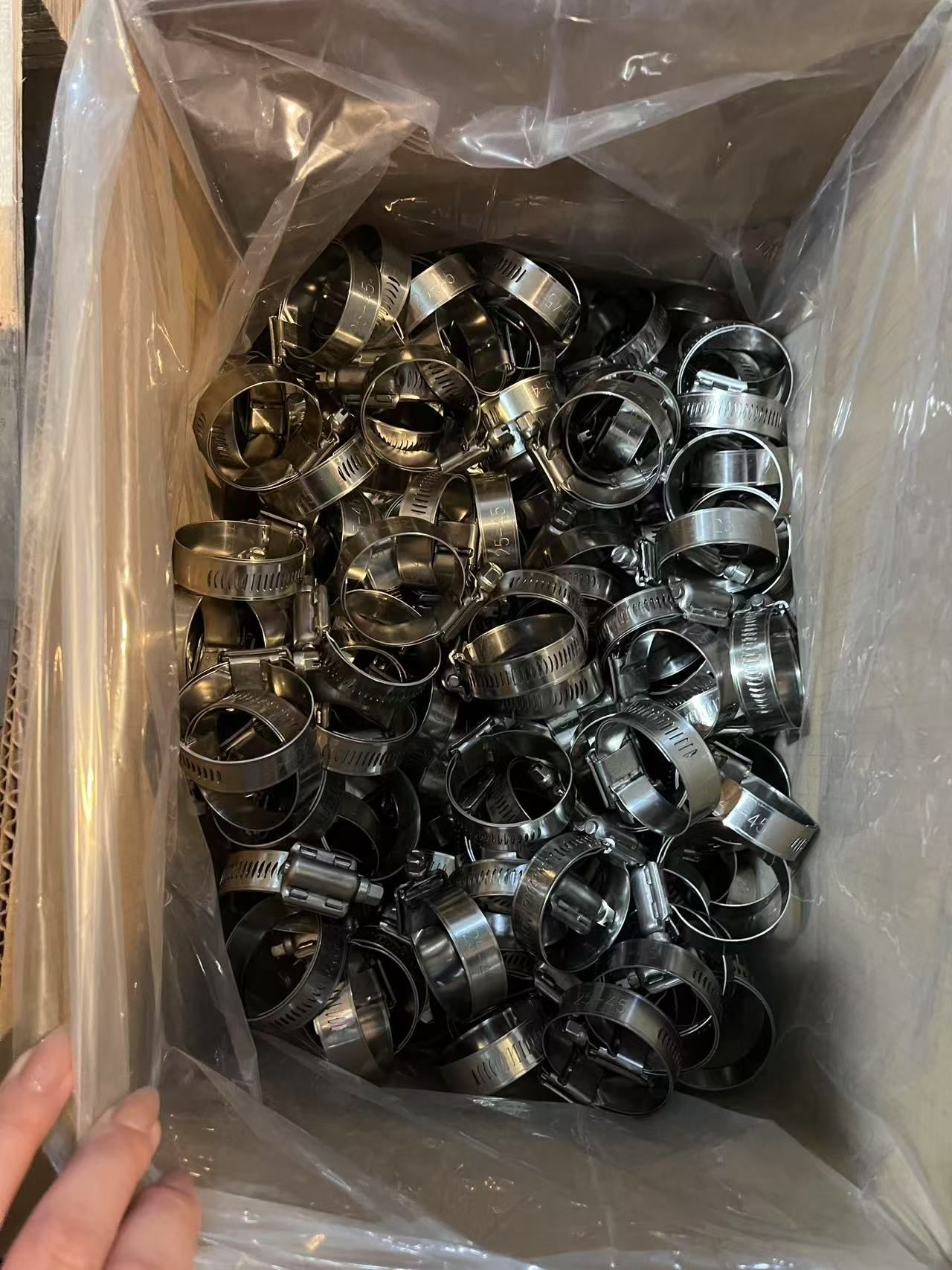

Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.
We also accept special package with plastic separated box.Customize the box size according to customer’s requirements.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
