Product Description
Indicated for heavy services in hose or tubes of hard material made of carbon steel or stainless steel
| NO. | Parameters | Details |
| 1 | Bandwidth*thickness | 32*2.0mm or 20*1.2mm |
| 2 | Size | 29-32mm to 264-276mm |
| 3 | Material | w1 all carbon steel |
| 4 | Package | 10pcs/bag 100pcs/ctn |
| 5 | Samples Offer | Free samples available |
| 6 | OEM/OEM | OEM/OEM is welcome |
Product Video
Production Process
Product Components
Production Application
The clamps on this line have a high torque capacity.
Indicated for heavy duty on tubes and hoses of rigid material.
Indicated for high pressures.
Product Advantage
| Bandwidth | 20/32mm |
| Thickness | 1.2/1.5mm |
| Surface Treatment | zinc plated/polishing |
| Bolt Size | 5/16”/1/2” |
| Manufacture technique | Stamping |
| Free Torque | ≤1Nm |
| Certification | ISO9001/CE |
| Packing | plastic Bag/Box/Carton/Pallet |
| Payment Terms | T/T,L/C,D/P,Paypal and so on |

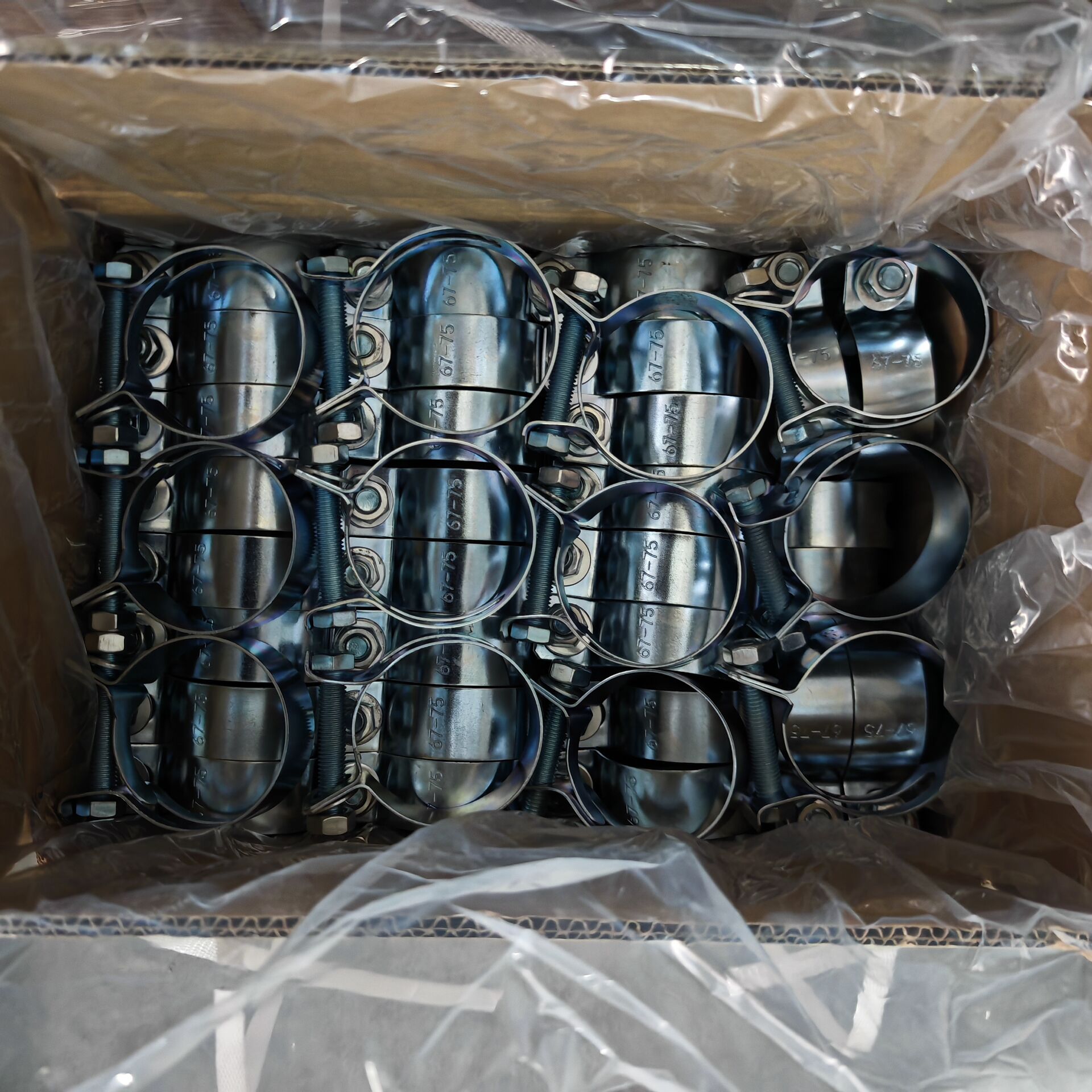

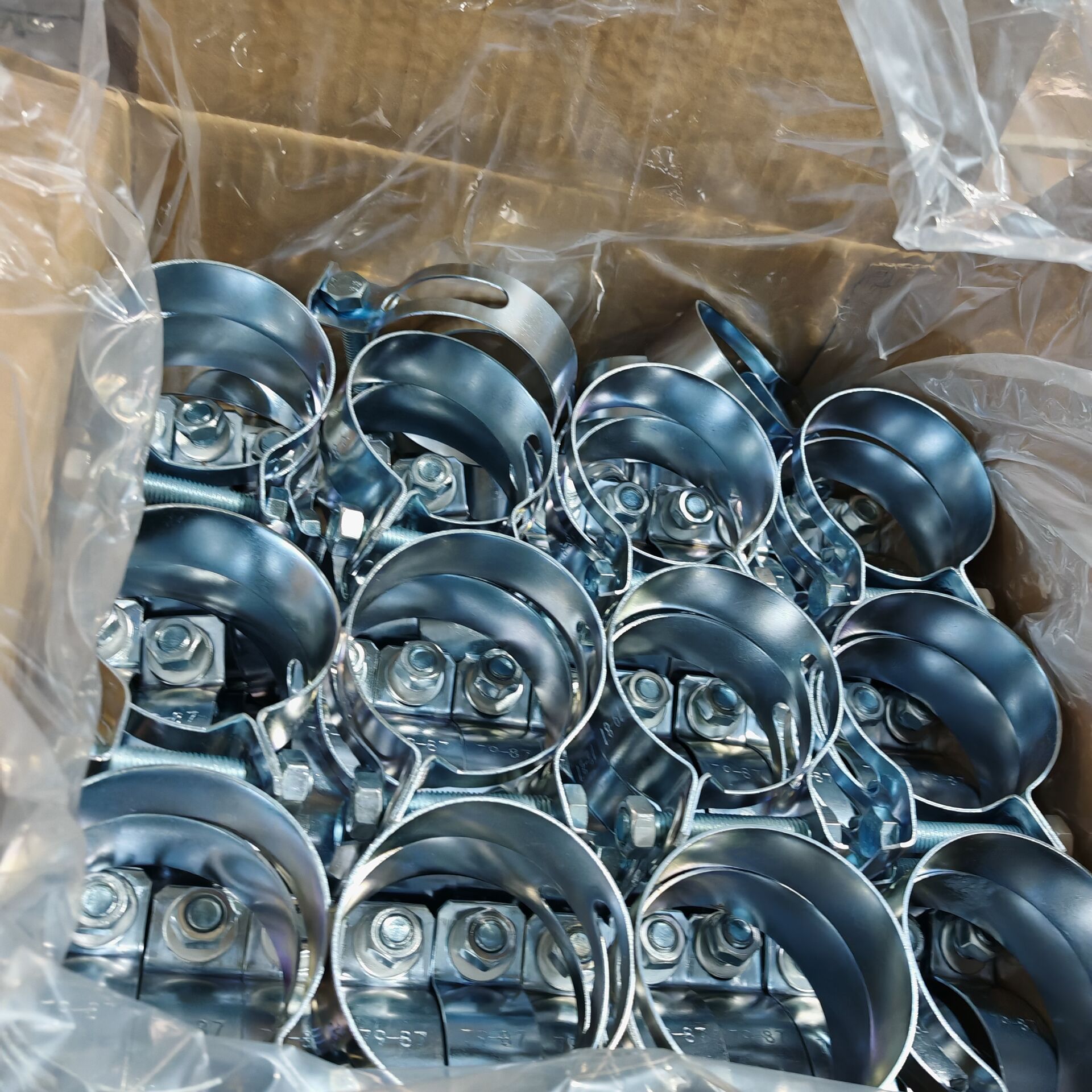

Packing Process
Box packaging: We provide white boxes, black boxes, kraft paper boxes, color boxes and plastic boxes, can be designed and printed according to customer requirements.
Transparent plastic bags are our regular packaging, we have self-sealing plastic bags and ironing bags, can be provided according to customer needs, of course, we can also provide printed plastic bags, customized according to customer needs.
Generally speaking, the outer packaging are conventional export kraft cartons, we can also provide printed cartons according to customer requirements: white, black or color printing can be. In addition to sealing the box with tape, we will pack the outer box, or set woven bags, and finally beat the pallet, wooden pallet or iron pallet can be provided.
Certificates
Product Inspection Report
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory welcome your visit at anytime
Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed
Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your
quantity
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free only you afford is freight cost
Q5: What is your terms of payment?
A: L/C, T/T ,western union and so on
Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
|||
|
Min(mm) |
Max(mm) |
(mm) |
(mm) |
W1 |
W4 |
W5 |
|
29 |
32 |
32 |
1.7/2.0 |
TOMGG32 |
TOMGSS32 |
TOMGSSV32 |
|
35 |
40 |
32 |
1.7/2.0 |
TOMGG40 |
TOMGSS40 |
TOMGSSV40 |
|
39 |
47 |
32 |
1.7/2.0 |
TOMGG47 |
TOMGSS47 |
TOMGSSV47 |
|
48 |
56 |
32 |
1.7/2.0 |
TOMGG56 |
TOMGSS56 |
TOMGSSV56 |
|
54 |
62 |
32 |
1.7/2.0 |
TOMGG32 |
TOMGSS32 |
TOMGSSV32 |
|
61 |
69 |
32 |
1.7/2.0 |
TOMGG69 |
TOMGSS69 |
TOMGSSV69 |
|
67 |
75 |
32 |
1.7/2.0 |
TOMGG32 |
TOMGSS32 |
TOMGSSV32 |
|
73 |
81 |
32 |
1.7/2.0 |
TOMGG81 |
TOMGSS81 |
TOMGSSV81 |
|
79 |
87 |
32 |
1.7/2.0 |
TOMGG87 |
TOMGSS87 |
TOMGSSV87 |
|
86 |
94 |
32 |
1.7/2.0 |
TOMGG94 |
TOMGSS94 |
TOMGSSV94 |
|
92 |
100 |
32 |
1.7/2.0 |
TOMGG100 |
TOMGSS100 |
TOMGSSV100 |
|
99 |
107 |
32 |
1.7/2.0 |
TOMGG107 |
TOMGSS107 |
TOMGSSV107 |
|
105 |
117 |
32 |
1.7/2.0 |
TOMGG117 |
TOMGSS117 |
TOMGSSV117 |
|
111 |
123 |
32 |
1.7/2.0 |
TOMGG123 |
TOMGSS123 |
TOMGSSV123 |
|
117 |
129 |
32 |
1.7/2.0 |
TOMGG129 |
TOMGSS129 |
TOMGSSV129 |
|
124 |
136 |
32 |
1.7/2.0 |
TOMGG136 |
TOMGSS136 |
TOMGSS136 |
|
130 |
142 |
32 |
1.7/2.0 |
TOMGG142 |
TOMGSS142 |
TOMGSSV142 |
|
137 |
149 |
32 |
1.7/2.0 |
TOMGG149 |
TOMGSS149 |
TOMGSSV149 |
|
143 |
155 |
32 |
1.7/2.0 |
TOMGG155 |
TOMGSS155 |
TOMGSSV155 |
|
149 |
161 |
32 |
1.7/2.0 |
TOMGG161 |
TOMGSS161 |
TOMGSSV161 |
|
162 |
174 |
32 |
1.7/2.0 |
TOMGG174 |
TOMGSS174 |
TOMGSSV174 |
|
175 |
188 |
32 |
1.7/2.0 |
TOMGG188 |
TOMGSS188 |
TOMGSSV188 |
|
187 |
199 |
32 |
1.7/2.0 |
TOMGG199 |
TOMGG199 |
TOMGSSV199 |
|
200 |
212 |
32 |
1.7/2.0 |
TOMGG212 |
TOMGSS212 |
TOMGSSV212 |
|
213 |
225 |
32 |
1.7/2.0 |
TOMGG225 |
TOMGSS225 |
TOMGSSV225 |
|
226 |
238 |
32 |
1.7/2.0 |
TOMGG238 |
TOMGSS238 |
TOMGSSV238 |
|
238 |
250 |
32 |
1.7/2.0 |
TOMGG250 |
TOMGSS250 |
TOMGSSV250 |
|
251 |
263 |
32 |
1.7/2.0 |
TOMGG263 |
TOMGSS263 |
TOMGSSV263 |
|
264 |
276 |
32 |
1.7/2.0 |
TOMGG276 |
TOMGSS276 |
TOMGSSV276 |
Packaging
Mangote pipe clamp package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
- our colour box with logo.
- we can provide customer bar code and label for all packing
- Customer designed packing are available
Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
