Manufacturer of Turn Key Hose Clamp - DIN 3017 German Type Worm Drive Hose Clamp – TheOne Detail:

vd Production Description

DIN 3017 German Type Worm Drive Hose Clamp  consist of a band, often galvanized or stainless steel, into which a screw thread pattern has been cut or pressed.One end of the band contains a captive screw. The clamp is put around the hose or tube to be connected, with the loose end being fed into a narrow space between the band and the captive screw. When the screw is turned, it acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite direction, to loosen). Screw clamps are normally used for hoses 1/2 inch diameter and up, with other clamps used for smaller hoses.

DIN 3017 German Type Worm drive hose clamp components include band,housing and screw.You also could see this product simple drawing,As follow picture showing:

NO.

Parameters Details

1.

Bandwidth*thickness 1) zinc plated :9/12*0.7mm
2) stainless steel:9/12*0.6mm

2.

Size 8-12mm to all

3.

Screw Wrench 7mm

3.

Screw Slot +” and -

4.

Free/Loading Torque 1N.m/6.5N.m

5.

Connection welding

6.

OEM/ODM OEM /ODM is welcome

vd Components

ef

德式

vd Material

TO Part No.

Material

Band

Housing

Screw

TOGM

W1

Galvanized steel

Galvanized steel

Galvanized steel

TOGMS

W2

SS200/SS300 Series

SS200/SS300 Series

Galvanized steel

TOGMSS

W4

SS200/SS300 series

SS200/SS300 series

SS200/SS300 series

TOGMSSV

W5

SS316

SS316

SS316

vd Tightening Torque

The DIN 3017 German type worm drive hose clamp recommended installation free torque is less than 1Nm,load torque is 6.5Nm.

vd Application

DIN 3017 German type worm drive hose clamp is widely used in automobiles, tractors, forklifts, locomotives, ships, mines, petroleum,chemicals,pharmaceuticals,agricultures and other water,oil,steam,dust etc

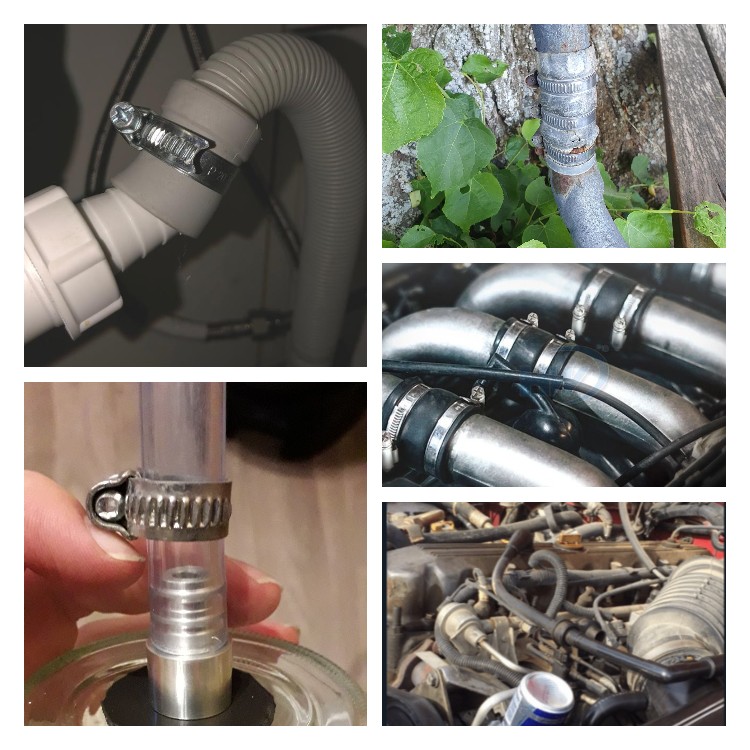

You can see some usage scenario in below picture.

And German type hose clamp main features as follows:

  • easy to operate
  • sturdy lock
  • pressure resistance
  • torque balanced
  • big adjustable range
